RVRN WHEELS | TESLA MODEL 3 | 2-PIECE

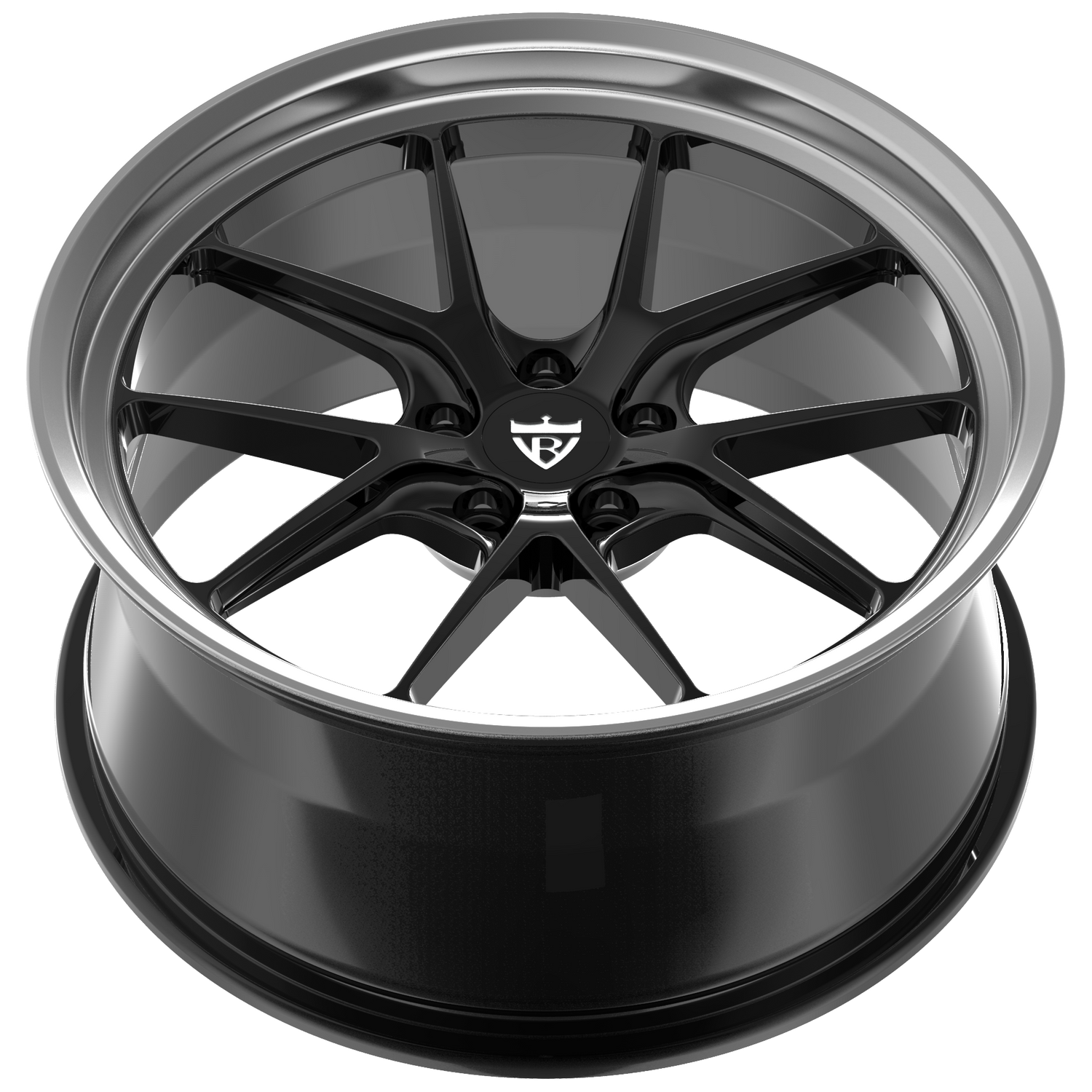

RV-HPF01(GP): HP-Forged Tesla Model 3 2-Piece Wheels 19x9.5

RV-HPF01(GP): HP-Forged Tesla Model 3 2-Piece Wheels 19x9.5

$499.00 USD
$499.00 USD
Sale Sold out
Shipping calculated at checkout.
Applicable Vehicle: Tesla Model 3
Wheel Size: 19x9.5 +25mmoffset
PCD:5x114.3
CB: 54.1mm

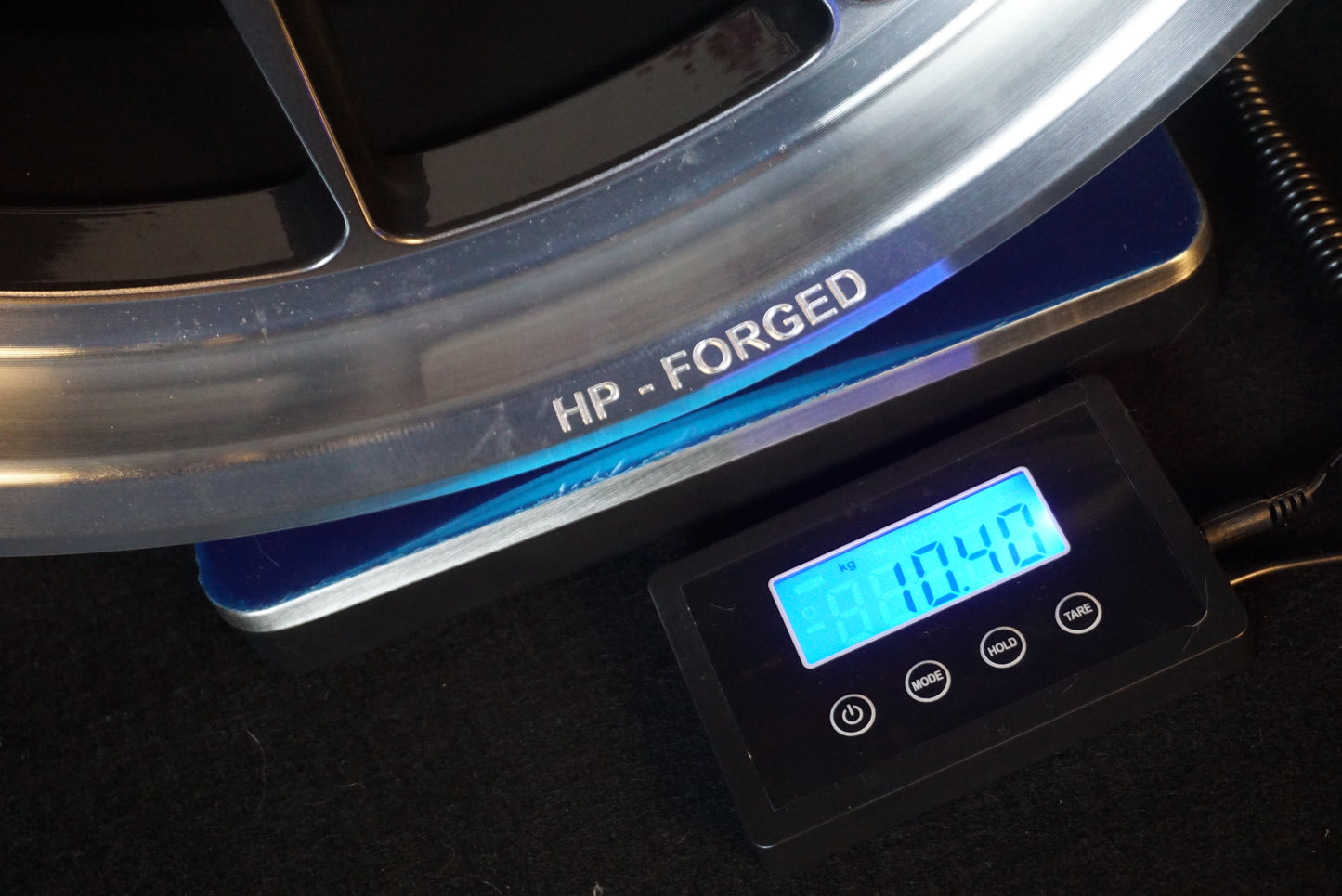

Weight: 10.4kg/22.92 lbs
Load Rating: 750 kg/1,650 lbs per wheel
Spoke Color
Barrel Color
Lip Color

Select Quantity "4".  (This is for one set of 4 wheels)

Live-Chat With RVRN

Chat with RVRN Support Agent Now!

Materials

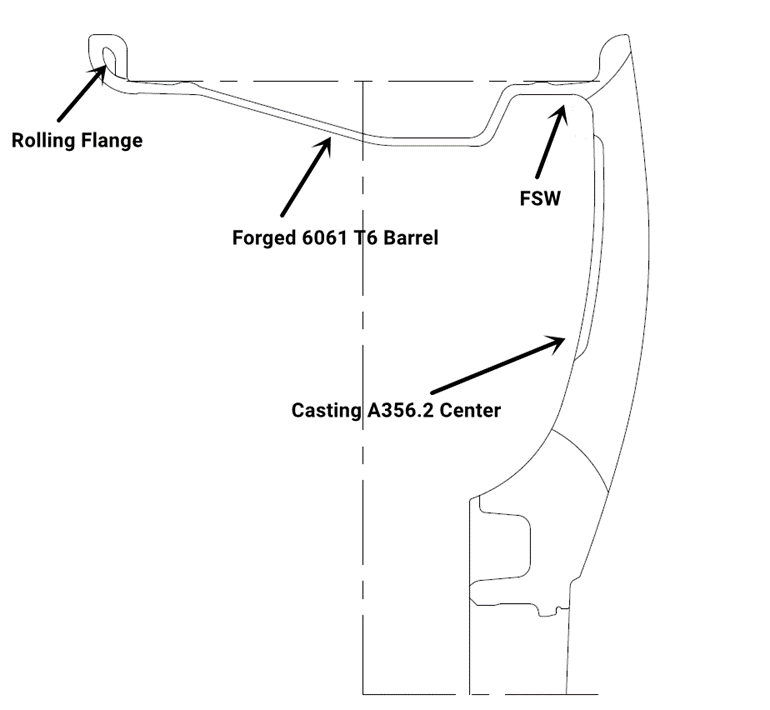

The highest quality forged 6061-T6 aluminum barrel is solidly joined to Low Pressure Casting Spoke by leading FSW technology.

Shipping & Returns

Free-orders over US$99.00

View full details

RVRN HP-Forged Tesla Wheels

RVRN HP-Forged Wheel is lighter, stronger and better performance under the same load, leading to better handling, more power and lower fuel consumption by using aerospace-grade FSW technology. In addition, FSW-forged wheels are designed to achieve the Deep Concave, BIG SLANTLIP visual appearance that can only be achieved with 2-piece forged designs.
1 4

TESLA MODEL 3 AFTERMARKET HP-FORGED WHEELS

RV-HPF01(GP) SERIES

RV-HPF01(GP) Series for Tesla Mode 3 five-lug applications are 2-piece HP-Forged wheels designed and produced for performance-minded Tesla owners with a concave design, a standard of 19x9.5 offset25, rim edge is flush with the fender for a fuller, sportier look.

FEATURES:

* The highest quality forged 6061-T6 aluminum barrel is solidly joined to Low Pressure Casting Spoke by leading FSW technology. Lighter, stronger, and better performance
Custom Made and Spec'd especially for Model 3 to achieve a Full Flush Fitment for a sportier look
* 19x9.5, Lightweight, lighter than Tesla Factory Wheels

* Deep Dish and BIG SLANT LIP
* Smaller offset (25mm) for a concave look
* 3-year Structural Warranty,
* TUV/ DOT/ JWL Verified

17-year forged wheel experience

RVRN Wheels

RVRN has been focused on forged wheels for 17 years and we're proud to be one of the few companies with a TUV, DOT Verified facility with a comprehensive array of brand new machinery, and we've served many top brands around the world for many years.

We value our business in the electric vehicle market. Electric vehicles typically require higher performance wheels due to the increased weight and torque. Under the existing technology, EV users have to pay extraordinarily high prices for forged wheels cuase the manufacturing cost.
We are committed to providing Tesla customers with the best high performance wheels and service, and to helping them make the best decision for their lifestyle and budget through our leading FSW Technology.

HP-FORGED WHEELS

Leading FSW Technology

Friction Stir Welding (FSW) is a solid-state joining process that uses a non-consumable tool to mix two pieces of metal together, creating a high-strength joint with good fatigue resistance. FSW is often used for high-end forged wheels because of its high strength and fatigue resistance, while also creating a smooth and even finish. In this process, a rotating tool is plunged into the joint line between two pieces of work material, creating a friction between them and generating heat. The high temperature causes the material to soften and mix together, while the tool's pin stirs the material together, creating a strong and homogenous joint. FSW is a reliable and cost-effective process for joining high-end forged wheels, and can be used to create complex geometries with tight tolerances.

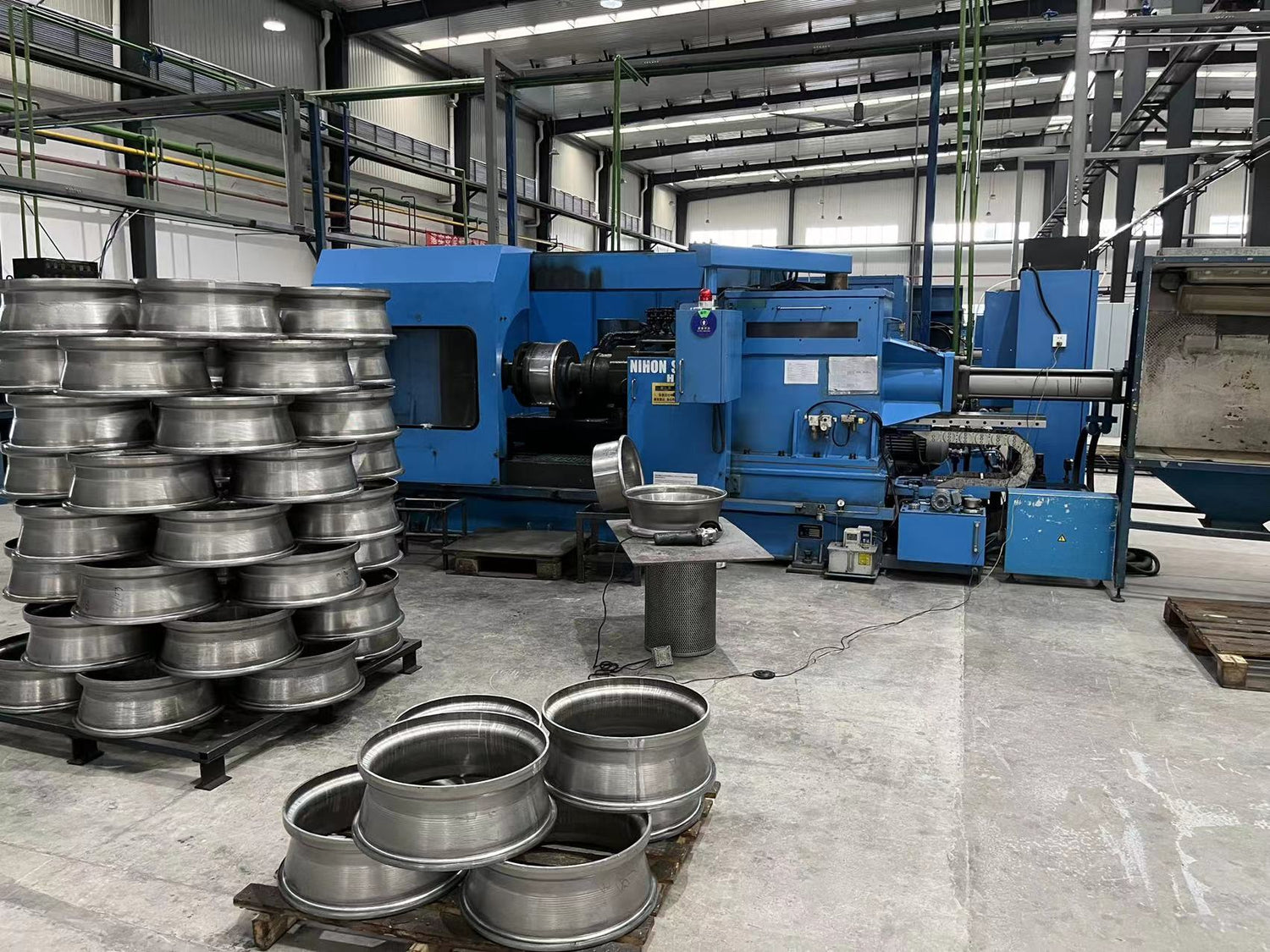

RVRN MANUFACTURING

  • STEP1: Design

    The design process involves creating the desired shape and size of the wheel. The wheels are designed in a computer-aided design (CAD) program and then tested in simulation software to ensure they meet safety and quality standards.

  • STEP2: Forging Barrel

    Our Barrel are machined from the highest quality forged 6061-T6 aluminum alloy creating a wheel that is not only strong but stiff and lightweight.

  • STEP 3: Low Pressure Casting Spoke

    Use of low-pressure casting process to complete the manufacture of center disk blanks.

  • STEP4: FSW Composite

    The highest quality forged 6061-T6 aluminum barrel is solidly joined to Low Pressure Casting Spoke by leading FSW technology.

  • STEP 5: Manual Processing

    Before the painting stage, each wheel is inspected and prepared manually. The brushed and polished wheels are further hand-crafted to create a unique custom look.

  • STEP6: Quality Control

    RVRN quality control team confirms every critical dimension according to detailed engineering schematics. After ensuring that the products pass the three internal tests, the products will be sent to the RVRN laboratory for testing and certification as required. Each RVRN Hyrid Forged Wheel meets the world’s highest standards in the industry.

  • STEP7: Finishing

    After machining, the wheel is ready for a finishing process. All wheels are held to the highest standards of finish quality.
    We adopt a specialized powder that is electrostatically applied to the wheel and then cured in an oven. This creates a tough, durable finish that is resistant to scratches and fading which provides superior protection and an attractive finish to forged wheels.

  • STEP8: Ready for Ship

    Once the above process is completed, your wheels are ready to be packed by RVRN Teram and shipped to your doorstep.
